CHAPTER 06 · BASICS · CORE CONCEPTS

Occupations and smearing

Choosing occupations for insulators and metals, smearing types and degauss, with measured scans.

On this page

Ninety percent of convergence trouble in metals and magnets traces back to how occupations are handled. Choosing occupations is the physical judgment "is this system an insulator or a metal?"

occupations, by system type

Value Meaning Use for
'fixed' Integer occupations; requires a gap Insulators and semiconductors
'smearing' Smooth partial occupations around the Fermi level Metals, and systems whose gap is uncertain
'tetrahedra' / 'tetrahedra_lin' / 'tetrahedra_opt' Exact BZ integration without smearing nscf runs for DOS and bands only
'from_input' Occupations given per band via the OCCUPATIONS card Special cases

Using smearing on an insulator lets states near the gap edge acquire small fractional occupations and contaminates the energy. Using 'fixed' on a metal stops the run with the system is metallic, specify occupations.

Smearing types and degauss

With occupations='smearing' two variables follow: which function to smear with (smearing) and how wide (degauss, in Ry).

Value Character Use for
'gaussian' Simple, safe, slow to converge General
'mv' (Marzari-Vanderbilt, cold) Free energy ≈ E(σ→0), no extrapolation needed Default choice for metals
'mp' (Methfessel-Paxton) Higher-order expansion; occupations can go negative Metals
'fd' (Fermi-Dirac) A physical electronic temperature Finite-temperature work

Smearing is a numerical stabilizer and an approximation at the same time. Larger degauss converges more easily but drifts further from the σ = 0 limit. The smearing contrib. (-TS) term in the output is the size of that contamination: if it is large, your degauss is too big.

Measured: degauss dependence per smearing type in Al

The scan below is from Example E5: fcc Al at 12×12×12 k, with degauss scanned for each smearing type.

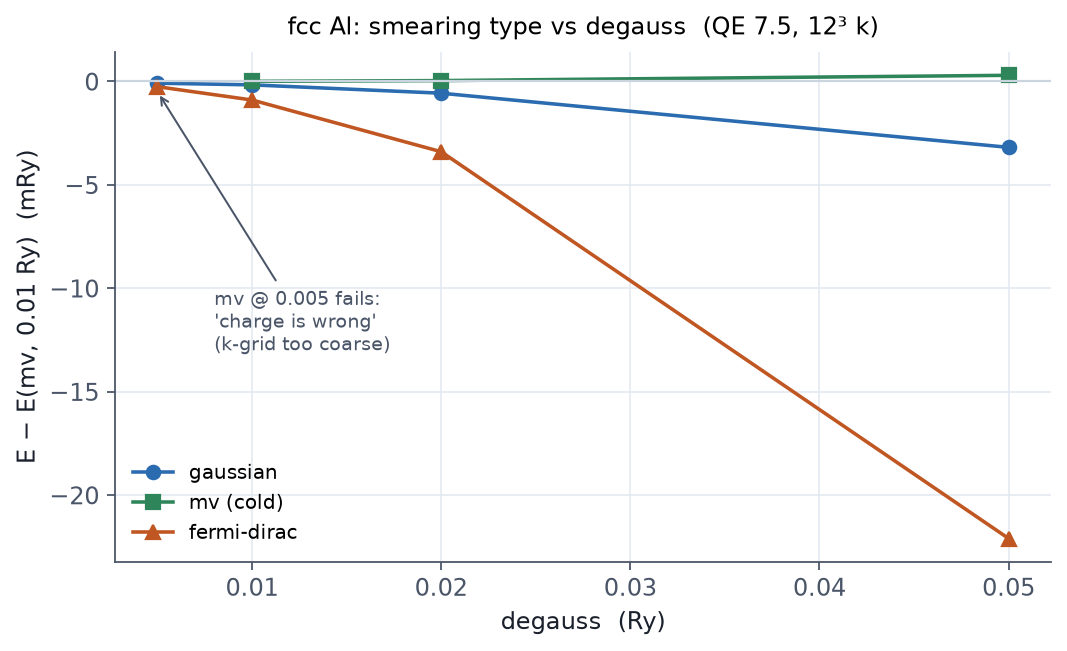

Al total energy vs degauss for gaussian, mv, and fd smearing
Measured fcc Al (QE 7.5). Cold smearing (mv) moves by only 0.3 mRy from 0.01 to 0.05 Ry, essentially flat, while gaussian drifts by 3 mRy and Fermi-Dirac by 22 mRy. This is the measured basis for "mv needs no extrapolation".

The tetrahedron method: post-processing only

'tetrahedra_opt' (the optimized tetrahedron method) integrates the BZ without smearing and gives the cleanest DOS. Its constraints:

  • It requires a Γ-centered automatic grid with zero shift (K_POINTS automatic with shifts 0 0 0).
  • Use it in the nscf step for DOS and bands, not in the SCF itself (Chapter 10).
  • Measured caveat: on QE 7.5 we found that projwfc.x writes all-zero PDOS on top of a 'tetrahedra_opt' nscf. If you need PDOS, use the classic 'tetrahedra' (Example E7).
Common mistakes

Setting degauss to "whatever converges nicely" and forgetting about it. The smearing width is an approximation that stays in your results, so always check that your target property is insensitive to it. In magnetic systems, an oversized degauss is a classic cause of the magnetic moment collapsing to zero (Chapter 12). Also, k-grid convergence and degauss convergence are coupled in metals; scan them together.

  • E5 · fcc Al metal: smearing SCF, Fermi level, and the measured degauss scan.
  • E4 · O₂ molecule: why even a molecule can need smearing (degenerate partial occupations) and tot_magnetization.
