CHAPTER 16 · ADVANCED · APPLICATIONS

Molecular dynamics

Born-Oppenheimer MD, the SVR thermostat, and sampling training data for machine-learned potentials.

On this page

calculation='md' in pw.x is Born-Oppenheimer MD (BOMD): every step converges an SCF and moves the ions on the resulting forces. (Car-Parrinello MD lives in the separate executable cp.x.) It is the tool for finite-temperature sampling, and in particular the starting point for generating training data for machine-learned potentials.

Input skeleton

&CONTROL
  calculation  = 'md'
  nstep        = 2000
  dt           = 20.0        ! Rydberg atomic units, about 0.968 fs
  tprnfor      = .true.
  tstress      = .false.
  disk_io      = 'none'      ! I/O is the bottleneck in MD
/
&SYSTEM
  ...
  nosym        = .true.      ! mandatory for MD (see common mistakes)
/
&IONS
  ion_dynamics    = 'verlet'
  ion_temperature = 'svr'    ! stochastic velocity rescaling
  tempw           = 300.0    ! K
  nraise          = 100
/
  • dt is in Rydberg atomic units (20.0 a.u. ≈ 0.968 fs), not femtoseconds.
  • The 'svr' thermostat (stochastic velocity rescaling, Bussi-Donadio-Parrinello) samples the canonical ensemble correctly and is robust; a good default. nraise is its coupling period.
  • Without disk_io='none' the wavefunction writes drown the run in I/O.
  • Every step is an SCF, so the &ELECTRONS settings govern the speed. The wavefunction and potential extrapolation (pot_extrapolation/wfc_extrapolation) matter a great deal.

Measured: 300 K BOMD of the FeO(+U) cell

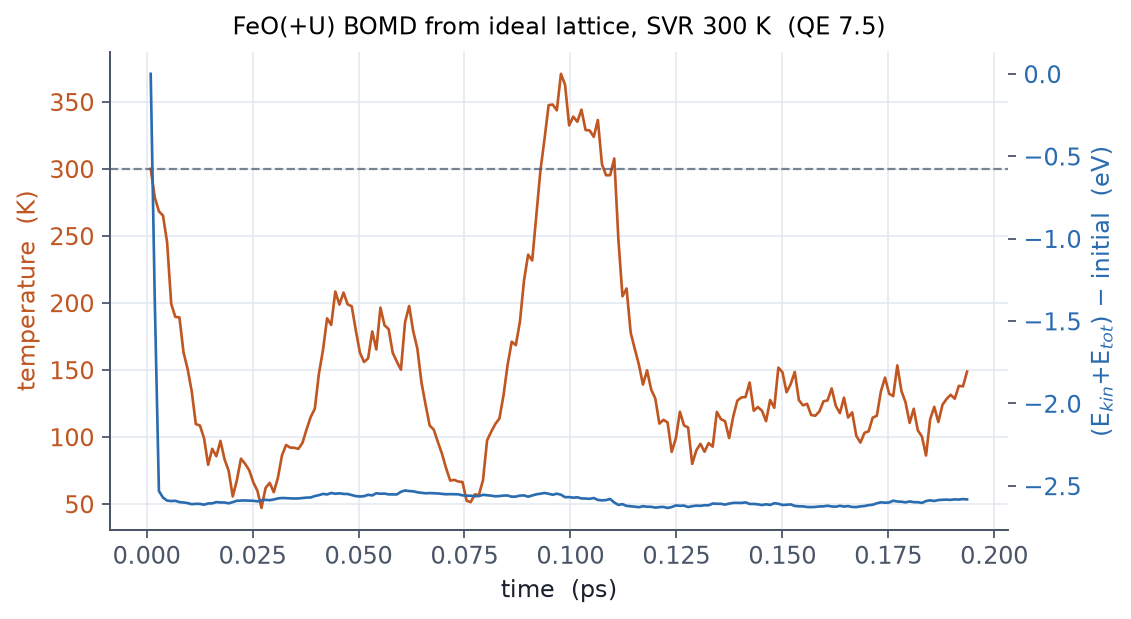

FeO BOMD: temperature and energy trace
Measured BOMD of the 4-atom FeO(+U) cell (QE 7.5, SVR 300 K, 0.19 ps). The early transient shows the ions leaving their ideal lattice sites and releasing potential energy, and the large temperature fluctuations (roughly 1/√N) are normal for such a small cell while the SVR thermostat equilibrates. Training data should be taken only after this transient. Setup and numbers in Example E13.

Principles for ML training data

  • Keep ecutwfc, ecutrho, the k-grid, smearing, and U absolutely identical across every frame. A dataset with mixed settings cannot be repaired at training time.
  • Converge on forces, not energies (Chapter 05).
  • Consecutive MD frames are strongly correlated; subsample (every 50 steps, say).
  • Getting stress into the dataset requires tstress=.true., but the Hubbard stress dies with stres_hub errors in the nosym+U (ortho-atomic) combination (measured on QE 7.5). In that case compute stress in separate scf runs on the extracted frames.
  • Check each step's Ekin + Etot (const) line and the temperature trace in the output.
Common mistakes

Running MD without nosym = .true.. Symmetry is detected on the initial structure, and thermal motion breaks it in the very first step, stopping the run with checkallsym: some of the original symmetry operations not satisfied (we hit this ourselves). For DFT+U MD also set mixing_fixed_ns: with symmetry off, rotations among degenerate orbitals stall the SCF, and freezing the occupation matrix for the first iterations releases it (E13, measured). Mistaking dt for femtoseconds (a 20 fs step) blows the trajectory up immediately. Finally, if an SCF inside the MD fails to converge, QE can continue on the previous density, and that frame's forces are contaminated: grep the log for convergence NOT achieved and drop those frames from any training set.
